Ebco 270° Wide Opening Click-on Hinge - Nickel Plated H270 - 1 Set (2 Nos)
Including GST Shipping calculated at checkout.
Couldn't load pickup availability
Same or Next-Day Delivery in Bengaluru.
We accept return requests within 2 days of delivery. check Return Policy
Full Access with 270° Wide Opening
The Ebco 270° Hinge is the perfect solution for cabinets requiring maximum accessibility. Unlike standard hinges, this specialized hardware allows your cabinet doors to fold back almost completely against the side panel, providing unobstructed access to your storage space. It is particularly popular in Bangalore for corner kitchen cabinets and office storage units.

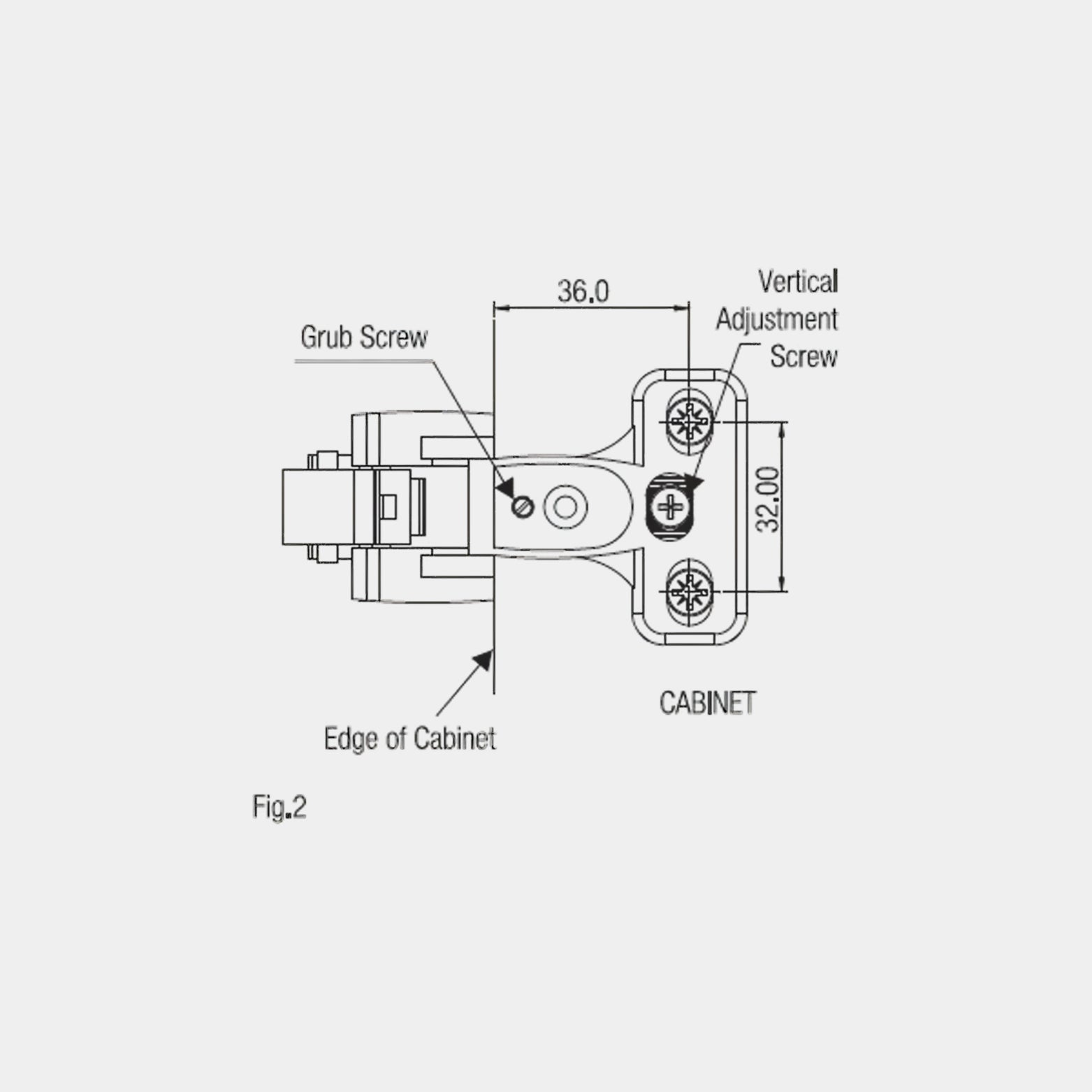

Equipped with a Unique Click-on system, this hinge ensures that shutter installation and removal are quick and tool-free. Built with a robust die-cast body and a premium Nickel Plated finish, it is designed for long-lasting performance in busy environments.
Technical Specifications
| Feature | Details |
| Model Code | H270 |
| Max. Opening Angle | 270 Degrees |
| Finish | Professional Nickel Plated |
| Shutter Thickness | 16mm to 19mm |
| Shutter Cavity | Ø35mm diameter, 12mm depth |
| Max. Shutter Size | 850mm x 550mm (for 2 hinges) |
Q: Where is a 270-degree hinge typically used? A: It is ideal for corner cabinets, medical cabinets, or any furniture where you need the door to swing wide and fold back against the side to allow full access to the interior.
Q: Is the installation difficult? A: Not at all. The "Click-on" system allows you to snap the shutter onto the mounting plate easily without extra tools once the initial holes are drilled.
Q: Does it fit standard cabinet doors? A: Yes, it works with standard shutter thicknesses ranging from 16mm to 19mm and uses a standard 35mm hinge cup hole.
