Ebco Concealed Cabinet Hanger CHC1 - 300kg Load Capacity 1 Set (2 Nos)
Including GST Shipping calculated at checkout.
Couldn't load pickup availability
Same or Next-Day Delivery in Bengaluru.
We accept return requests within 2 days of delivery. check Return Policy
The Ebco Cabinet Hanger - Concealed is a specially designed concealed fitting built for securely hanging cabinets on walls. Engineered for architects, interior designers, and modular kitchen manufacturers across India, this heavy-duty hardware provides a seamless, invisible mount that elevates modern cabinetry aesthetics. Packaged and sold as a convenient set of 2 Nos, this fitting delivers uncompromising structural integrity whether you are outfitting a large-scale commercial project or upgrading your home kitchen. Available online through Hardware Depot with reliable pan-India transit, or via our physical SS Hardware store in Bangalore, we ensure your project timelines are met with our rapid fulfillment network.
Key Features
-

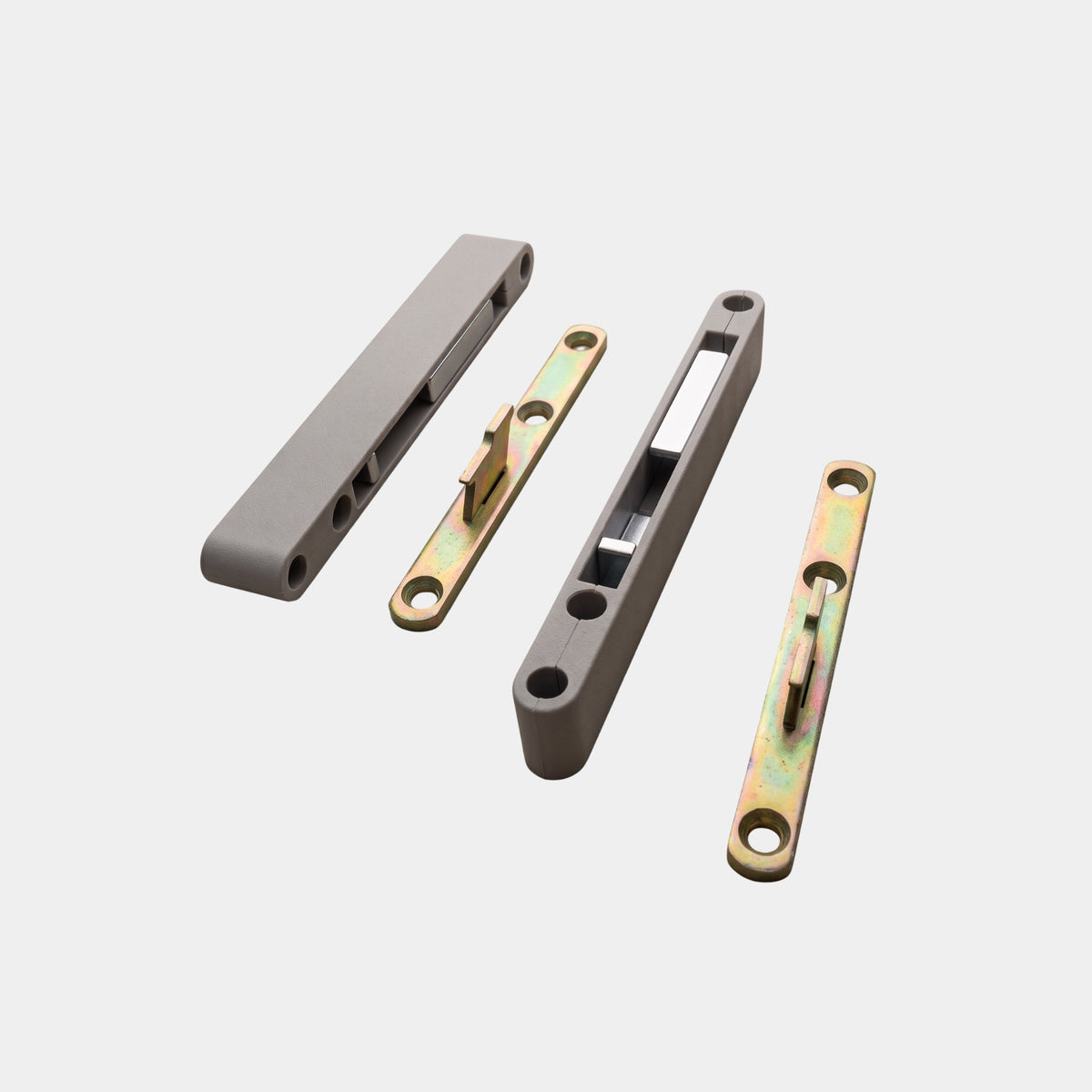

Standard Packaging: Comes as 1 complete set containing 2 individual Nos.
-
Heavy-Duty Performance: Exceptionally strong, offering a load capacity of 300 Kg per pair.
-
Versatile Configuration: Can be deployed using the standard set of 2 on top-hung units, or combined as a set of 4 for maximum stability on larger units.
-
Hyper-Local & Nationwide Logistics: Enjoy reliable pan-India shipping, or utilize our local Bangalore same-day/next-day delivery. Free pickup is also available at our SS Hardware store in Bangalore; you will receive a notification the moment your order is ready.
Technical Specifications
| Feature | Specification |
| Item | Cabinet Hanger - Concealed |
| Code No. | CHC1 |
| Packaging | 1 Set (Contains 2 Nos) |
| Load Capacity | 300 Kg per pair |
| Min. Side Panel Thickness | 18mm |
| Installation Requirement | Requires routing |

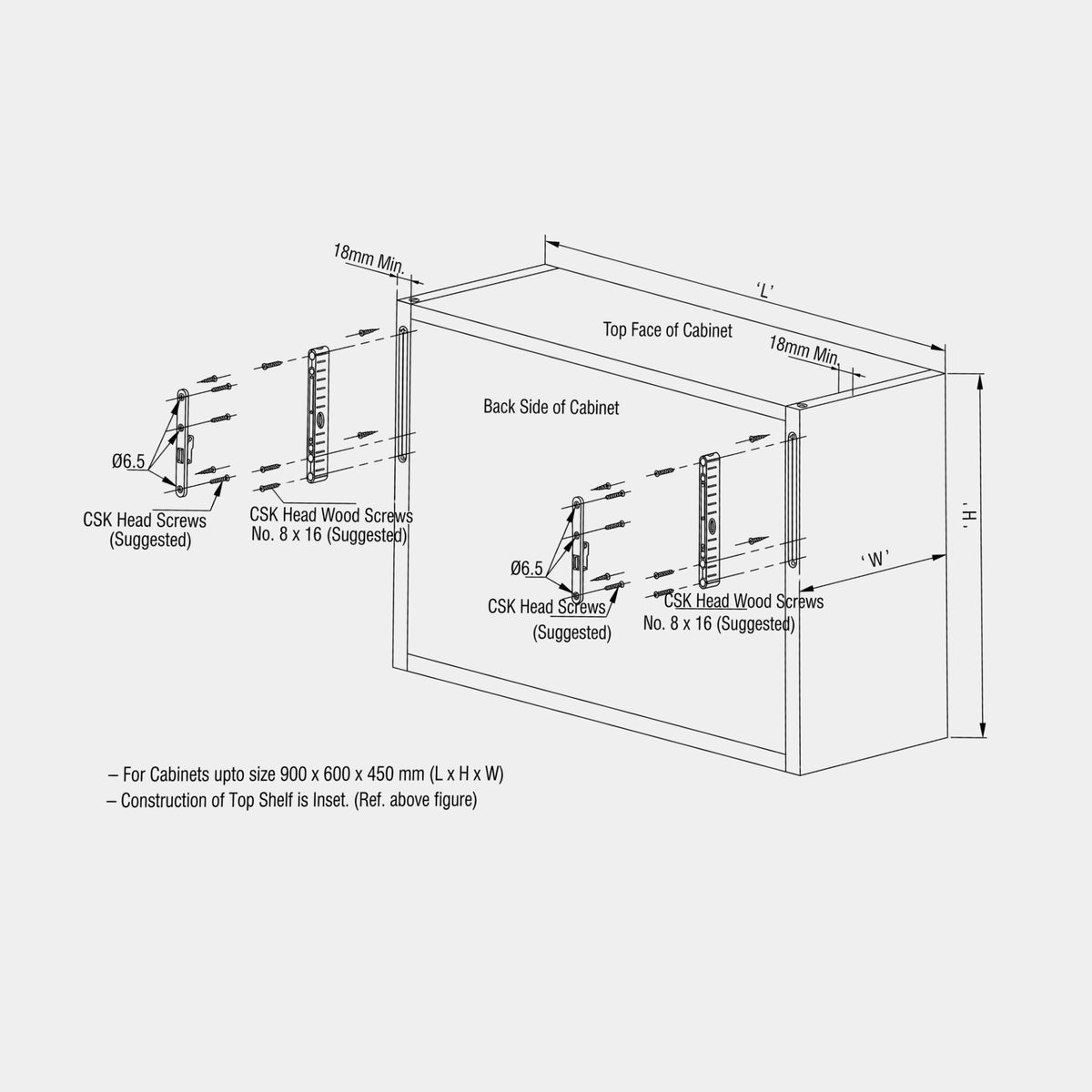

⚠️ IMPORTANT INSTALLATION NOTE: Proper installation of the CHC1 requires precision routing into the cabinet framework. The cabinet must have a minimum side panel thickness of 18mm. Fastening screws are sold separately; CSK Head Wood Screws (No. 8 x 16) are officially suggested for optimal structural hold.
Q. What is included in the package? Are the installation screws included?
The hanger comes packaged as 1 set containing 2 pieces. No, mounting hardware is sold separately. For safe and secure installation, it is suggested to use CSK Head Wood Screws, specifically No. 8x16.
Q. I need this urgently for a site in Bangalore. How fast can I get it?
Hardware Depot offers same-day or next-day local Bangalore delivery. Alternatively, you can select "Free Pickup at Store" during checkout. We will notify you instantly when your order is ready for collection at our SS Hardware location in Bangalore.
Q. Can this handle large, fully loaded overhead kitchen cabinets?
Absolutely. When installed correctly on side panels with a minimum thickness of 18mm, the hangers support an impressive load capacity of 300 Kg per pair. You can also use multiple sets (4 pieces) for even larger, heavier units.
