Ebco Cabinet Stay Heavy CS1-H
Including GST Shipping calculated at checkout.
Couldn't load pickup availability
Same or Next-Day Delivery in Bengaluru.
We accept return requests within 2 days of delivery. check Return Policy

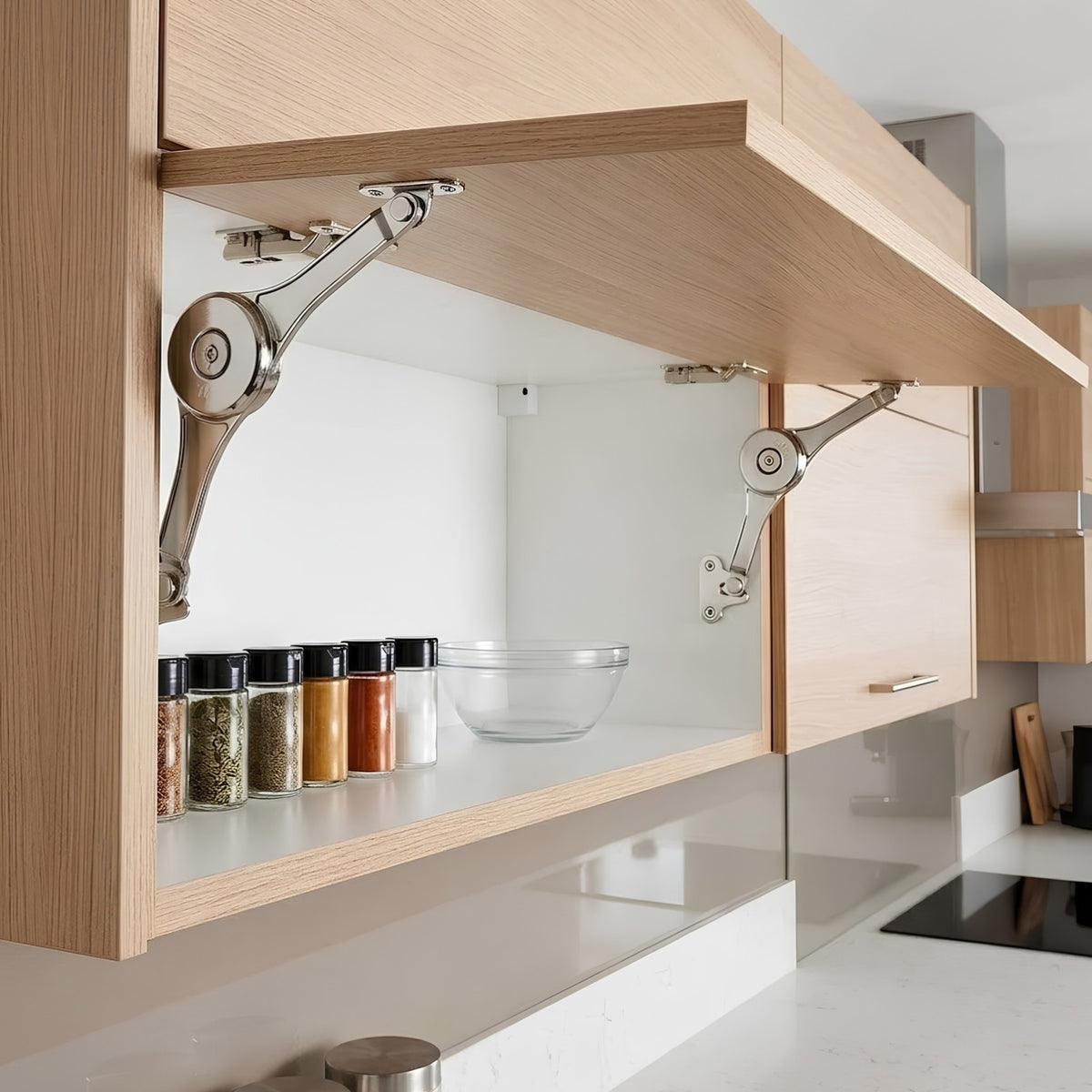

Designed for architects, interior designers, modular kitchen manufacturers, and discerning end-users, the Ebco Heavy Cabinet Stay delivers premium overhead shutter support. Built from durable zinc alloy with a sleek nickel-plated finish, this heavy-duty stay ensures smooth operation for modular cabinets. Whether you are outfitting a large-scale commercial project across India or upgrading a single kitchen locally, Hardware Depot guarantees authentic Ebco fittings. For our local Bangalore customers, choose between same-day or next-day delivery, or opt for our seamless Free Store Pickup at SS Hardware you will receive an instant notification the moment your order is ready.
Key Features
- Variable Opening Angles: Flexible mounting options allow cabinet doors to open and hold at 75°, 90°, or 110°.
- High Load Capacity: A single stay supports up to 6 kgs, while installing two stays can support up to 13.3 kgs.

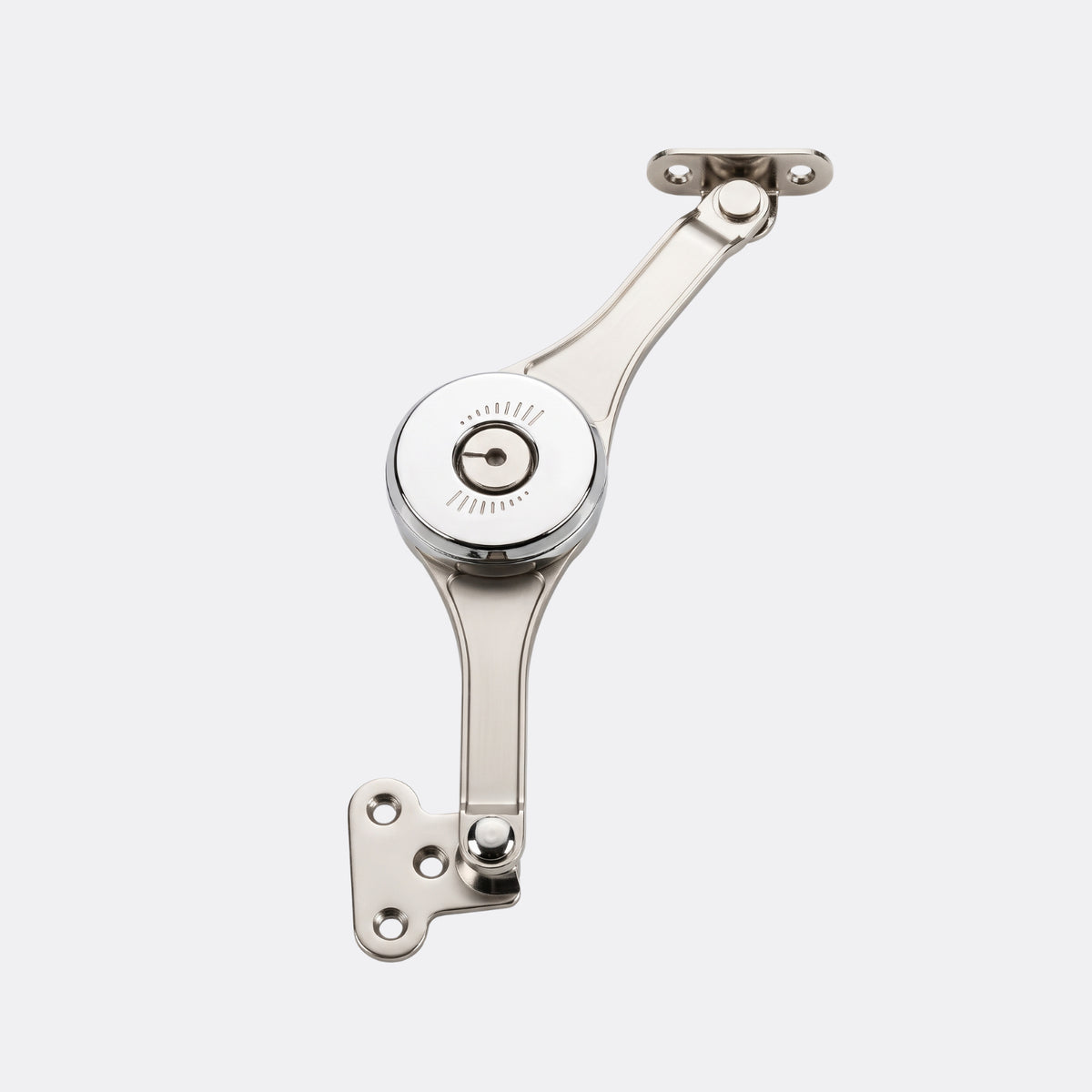

- Adjustable Pressure: Customize the lifting resistance perfectly to your shutter weight using the provided Allen key.
- System 32 Compatible: Integrates seamlessly into standard modular cabinet drilling patterns.
- Pan-India & Hyper-Local Delivery: Hardware Depot offers reliable nationwide transit, while Bangalore buyers enjoy exclusive same-day/next-day local delivery and free in-store pickup at SS Hardware.
Technical Specifications
| Specification | Details |
| Brand | Ebco |
| Model Names | Cabinet Stay - Heavy (Right) & Cabinet Stay - Heavy (Left) |
| Product Codes | CS1-HR (Right) / CS1-HL (Left) |

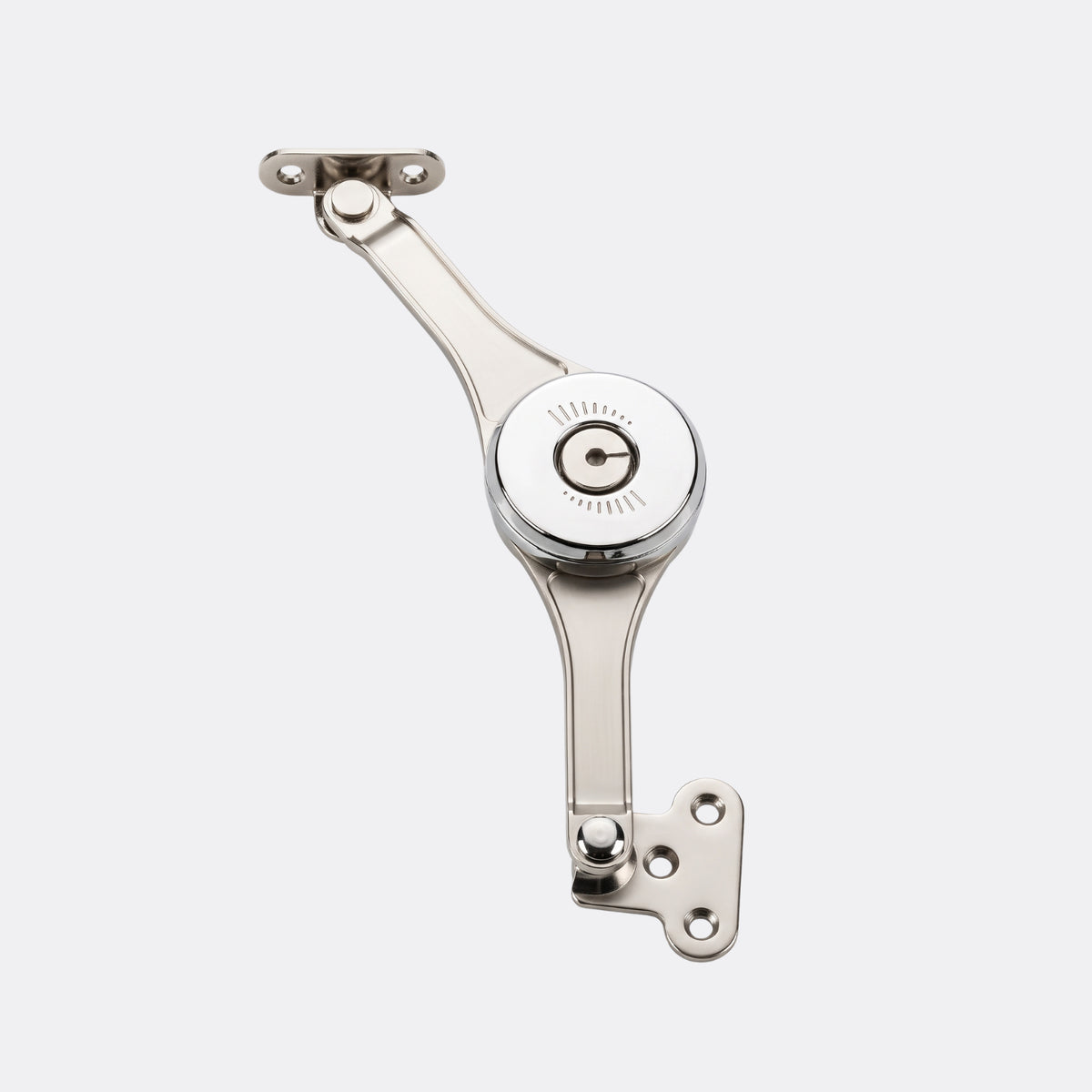

| Material | Zinc Alloy |
| Finish | Nickel Plated |
| Max Shutter Size (1 Stay) | 900 x 450 x 18mm |
| Max Shutter Size (2 Stays) | 900 x 650 x 18mm |
⚠️ Important Installation Note: This product is recommended for use specifically with 'Ebco' Slip on / Click on Hinges (Overlay). Hinges are sold separately. Left and Right stays must be selected based on your cabinet orientation.
Q: Do I need to buy left and right stays separately for a wide cabinet?
A: Yes. If your cabinet shutter exceeds 900 x 450 x 18mm or 6 kgs in weight, you will need two stays to support up to 13.3 kgs. Ensure you add both the CS1-HR (Right) and CS1-HL (Left) models to your cart.
Q: Does this cabinet stay include the necessary hinges?
A: No, hinges are not included. Ebco recommends pairing this heavy stay exclusively with their 'Slip on' or 'Click on' overlay hinges for optimal performance.
Q: I am based in Bangalore. How fast can I get this for an ongoing site project?
A: Very fast Hardware Depot offers same-day or next-day local delivery in Bangalore. Alternatively, select "Free Pickup at Store" during checkout; we will notify you when it is ready for collection at SS Hardware.
