Ebco Livsmart Concealed Dining Table Hardware CDTS1-5474 | Champagne Gold
Including GST Shipping calculated at checkout.
Hurry up! Only 5 item(s) items left in stock
Couldn't load pickup availability
Same or Next-Day Delivery in Bengaluru.
We accept return requests within 2 days of delivery. check Return Policy

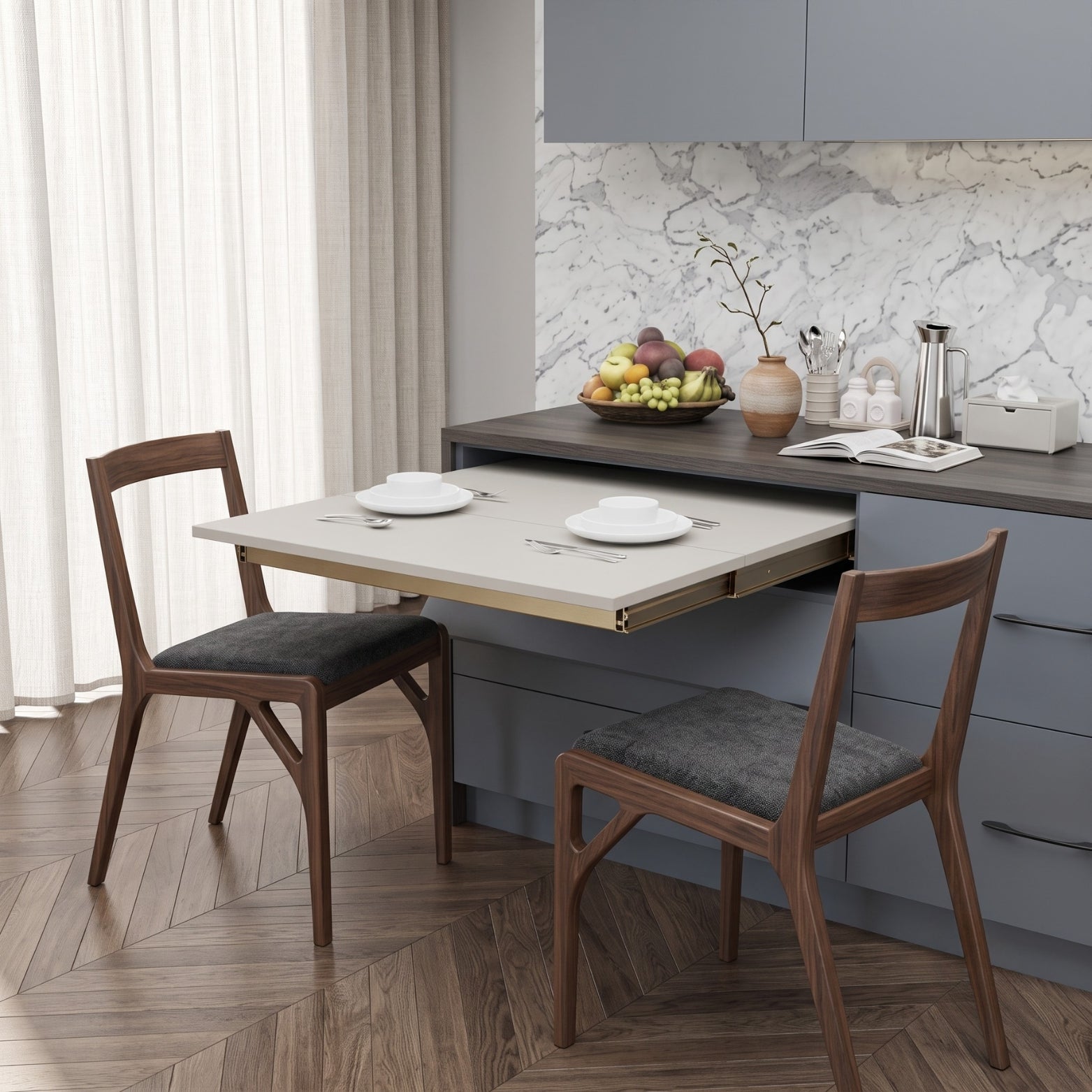

Maximize spatial efficiency in modern apartments and premium commercial builds with the Ebco Livsmart Concealed Dining Table (Item Code: CDTS1-5474), available online at Hardware Depot. Engineered for architects, premium interior designers, and modular kitchen manufacturers across India, this state-of-the-art pull-out mechanism is designed to fit cabinet carcasses with an internal width of 600 mm to 1200 mm. The heavy-duty hardware transforms standard cabinet drawers into fully functional dining tables or executive workstations in seconds. Featuring an ultra-durable all-aluminium alloy construction finished in an elegant Champagne Gold, the hidden slide mechanism uses a whisper-quiet, single-extension soft-closing track to ensure silent, effortless operation. Whether you are a direct customer looking to optimize your studio home or a professional builder looking for space-saving hardware in metropolitan hubs, this system offers German-engineered elegance and structural longevity. Available for nationwide delivery through Hardware Depot, with exclusive same-day or next-day shipping in Bangalore and Free Store Pickup at our local outlet, SS Hardware (Bangalore).
Key Features
-
Heavy-Duty Load Capacity: Specially engineered to comfortably support up to 30 kg of weight when fully extended.
-
Flexible Width Compatibility: Fits perfectly into standard cabinetry layouts with an inner cabinet width (inner-to-inner carcass) ranging from 600 mm to 1200 mm.
-

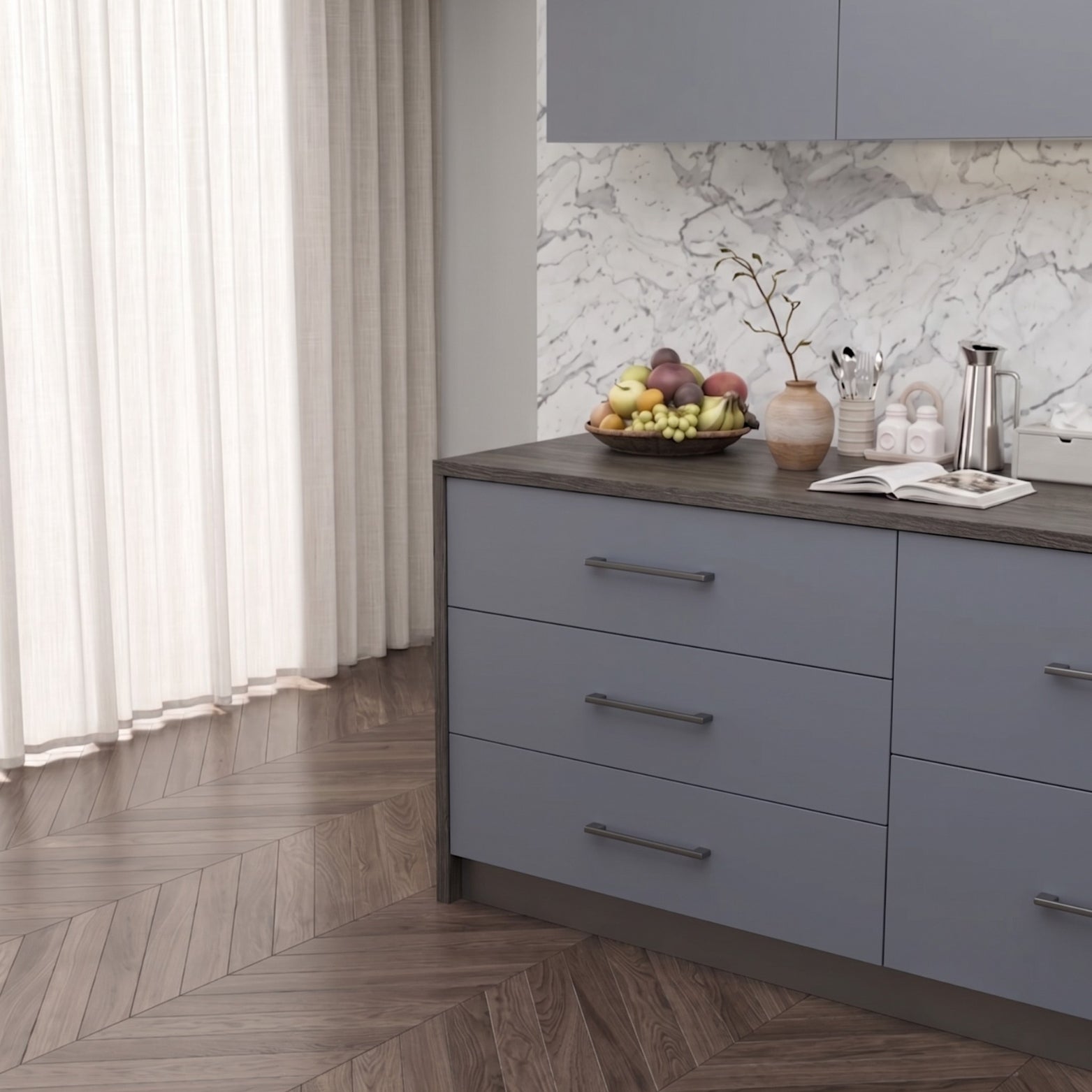

Premium Space-Saving Design: Integrates seamlessly into modular kitchen drawers, study alcoves, and kitchen islands, pulling out effortlessly when needed and sliding back entirely out of sight.
-
All-Aluminium Alloy Construction: Highly robust, rust-proof, metal structural guide rails with a luxurious shining Champagne Gold finish for a high-end, premium aesthetic.
-
Smooth Soft-Closing Slide: Equipped with an integrated mute buffer and soft-closing technology for smooth, silent operation without jarring stops.
-
Versatile Multi-Scenario Utility: Perfect for space-constrained residential layouts, serving flawlessly as a pull-out dining table, study desk, or extra kitchen prep counter.
-
Flexible Delivery & Pickup:
-
Free Instant Store Pickup: Get notified as soon as your order is ready for pickup at our physical experience center, SS Hardware in Bangalore.
-
Hyper-Local Bangalore Delivery: Enjoy guaranteed same-day or next-day delivery across Bangalore.
-
Reliable Pan-India Transit: Fast, secure, and fully insured B2B/B2C shipping to Tier-1 and Tier-2 cities nationwide.
-
Technical Specifications
|
Parameter |
Specifications & Value |
|---|---|
|
Brand |
Ebco (Livsmart Series) |
|
Product Name |
Concealed Dining Table System |
|
Item Code |
CDTS1-5474 |
|
Hardware Finish |
Champagne Gold |
|
Slide Material |
High-Grade Aluminium Alloy |
|
Extension Type |
Hidden Single Extension Slide |
|
Load Bearing Capacity |
30 kg |
|
Cabinet Inner Width Range |
600 mm to 1200 mm (Inner-to-inner cabinet clearance) |
|
Minimum Cabinet Inner Depth |
550 mm |
|
Minimum Drawer Height Clearance |
146 mm (Minimum bracket height requirement: 86 mm) |
|
Fixed Plate L1 Depth |
529 mm (Plate Width = Internal Cabinet Width minus 6 mm) |
|
Folding Plate L2 Depth |
355 mm (Plate Width = Internal Cabinet Width minus 6 mm) |
|
Hinges Requirement |
Minimum two cross hidden hinges required for plate joining (Plate thickness of 18 mm or thicker) |
⚠️ IMPORTANT INSTALLATION & EXCLUSION NOTE This product listing is for the concealed slide hardware runners mechanisms only. The wooden tabletops, cabinet carcass, cross hidden hinges, and internal drawer panels shown in product visualizations are not included and must be fabricated separately by your carpenter or modular kitchen supplier to match your existing home interior laminates.
Q: Does the Ebco Concealed Dining Table CDTS1-5474 come with the wooden tabletop panels?
No. The package contains the complete heavy-duty aluminium alloy slide mechanism hardware. The wooden folding panels must be custom-sourced and finished by your local carpenter or interior design contractor to match your kitchen cabinet laminate or wood veneer. Technical dimensions for the L1 (529 mm depth) and L2 (355 mm depth) wooden plates are included in our technical spec sheets.
Q: What are the exact structural space requirements inside my cabinet to install this hardware?

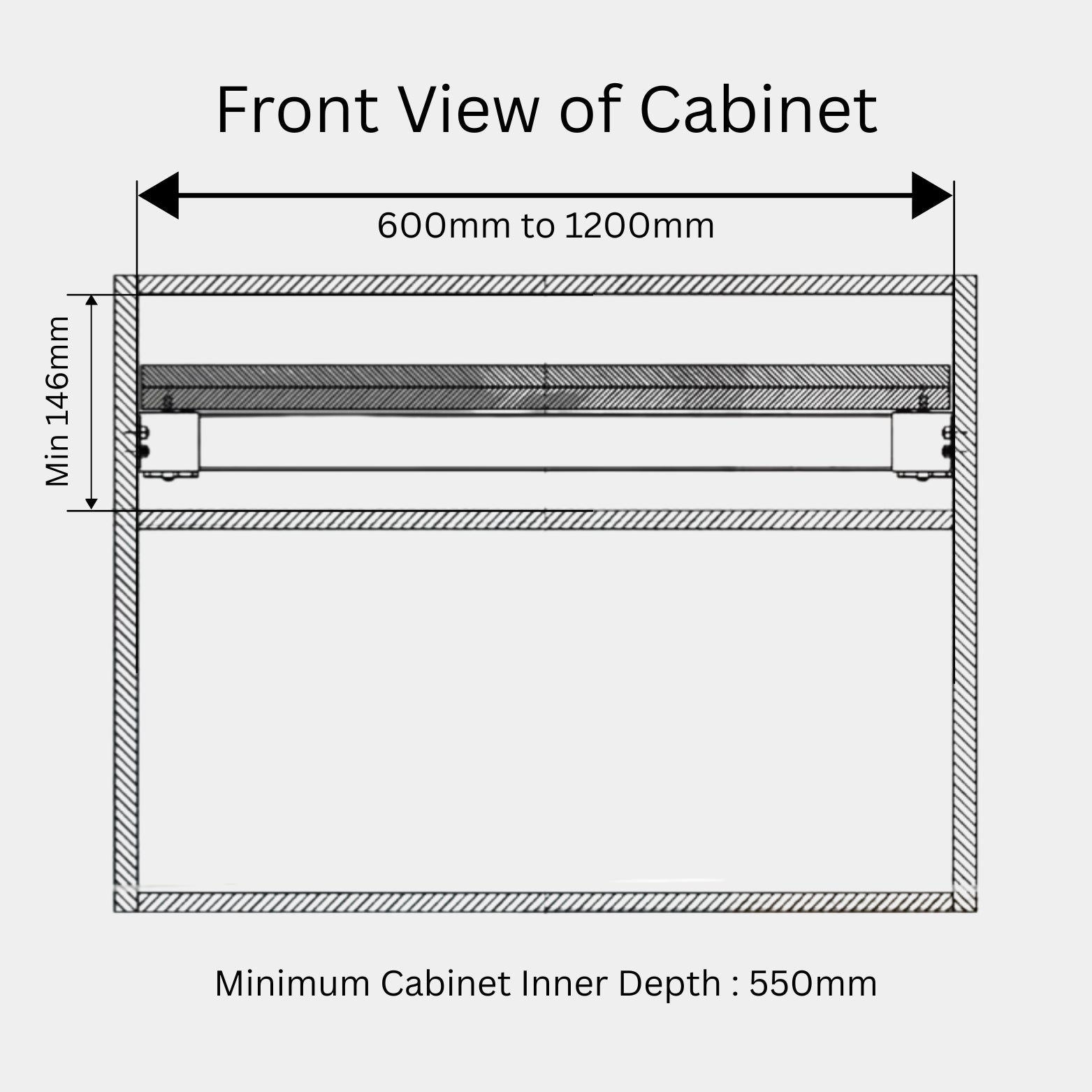

Your cabinet carcass must have an internal width of 600 mm to 1200 mm (inner-to-inner), a minimum internal clear depth of 550 mm, and a minimum overall height clearance of 146 mm inside the drawer slot. The wooden top panel width (LZ) must be exactly calculated as your internal cabinet width (LW) minus 6 mm (LZ = LW - 6 mm) to ensure a flawless fit.
