Ebco Wall Bed - Double (Complete Fittings with Frame, Slats, Folding Leg Transmission & Gas Lifts WBHD1 Kit
Including GST Shipping calculated at checkout.
Hurry up! Only 10 item(s) items left in stock
Couldn't load pickup availability
Same or Next-Day Delivery in Bengaluru.
We accept return requests within 2 days of delivery. check Return Policy

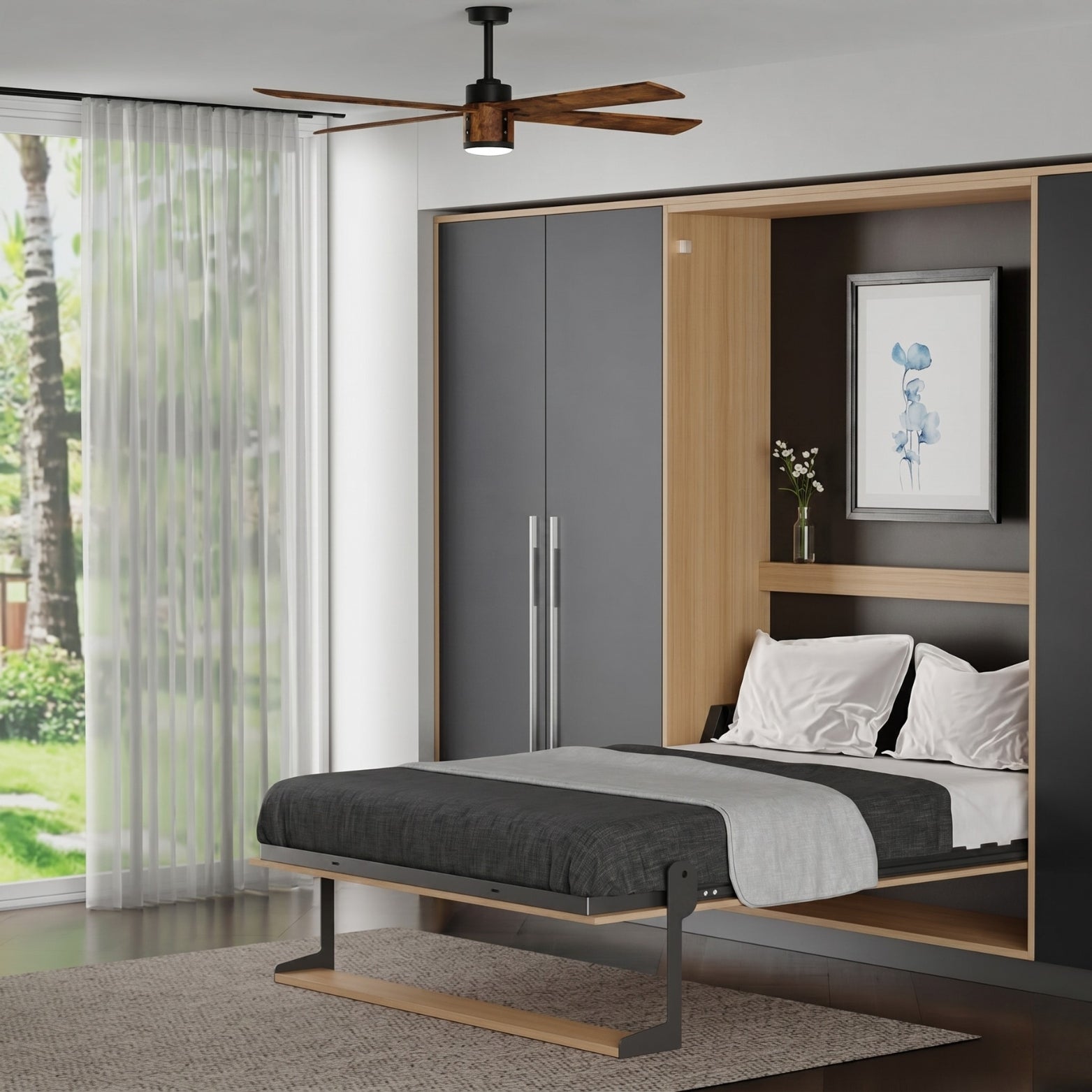

Maximize your square footage without sacrificing comfort. The Ebco Livsmart Wall Bed Double (WBHD1) is an all-in-one, heavy-duty space-saving solution that comes complete with gas spring lift pistons. Available online at Hardware Depot and for live demos at SS Hardware (Bangalore), this premium kit includes the entire structural frame, automatic folding legs, and calibrated hydraulic pistons. It is engineered to effortlessly tuck a full-sized double bed into a sleek wall cabinet, making it the highest-rated choice for Bangalore's modern apartments, studio homes, and multi-functional guest rooms.
Key Features
- Complete Combo Kit: No need to source parts separately; includes the main bed frame, support slats, mounting brackets, and heavy-duty gas spring pistons.
- Effortless Counter-Balanced Lifting: The included high-capacity gas pistons take the weight load, allowing anyone to raise or lower the double bed with a light, smooth pull.
- Synchronized Automatic Legs: Intelligent leg transmission automatically folds the legs neatly inside when closing and deploys them securely when lowering.
- Ergonomic Bed Base: Equipped with built-in flexible wooden slats for superior spine support and natural mattress breathability.
- Robust Premium Build: Finished in a sleek Anthracite powder coating for scratch resistance and a seamless look with modern premium wardrobes.
Technical Specifications
| Specification | Details |
|---|---|
| Product Component | Wall Bed Frame + Fittings + Gas Lift Pistons (Complete Kit) |
| Bed Frame Dimensions | 2000 mm x 1525 mm |
| Recommended Mattress Size | 1940 mm x 1520 mm |
| External Cabinet (Carcass) Dimensions | 2280 mm (H) x 1670 mm (W) (Based on standard 25mm thick plywood panels) |
| Internal Cabinet Clearances | 2230 mm (H) x 1620 mm (W) |
| Minimum Cabinet Depth | 420 mm Minimum |
| Finish | Premium Anthracite Frame |
| Piston Rating | Calibrated high-capacity gas springs included to handle standard mattress and panel dead weights seamlessly. |
Piston Configuration
| Compatible Piston Model | Rated Force Capacity | Combined Dead Weight Range | Selection Guideline (Mattress & Front Facade Panels) |
|---|---|---|---|
| WBHDP-140 | 1400N | 95 – 100 kgs | Best suited for lightweight foam/coir mattresses and streamlined modern composite door panels. |
| WBHDP-170 | 1700N | 115 – 120 kgs | Heavy-Duty Setup: Ideal for premium dense memory foam/spring mattresses and solid structural plywood fronts. |
Q: Do I need to buy the hydraulic gas pistons separately for this Ebco model?
A: No This specific product kit from Hardware Depot includes the compatible gas spring pistons.
Q: What else do I need to build the complete wall bed setup?
A: You will only need to get your local carpenter to construct the external plywood cabinet carcass (following our precise dimension chart) and provide your preferred double mattress.
Q: Can I check the build quality and pick it up directly in Bangalore?
A: Absolutely. You can place your order online via Hardware Depot for immediate delivery anywhere in Bangalore, or visit our retail storefront, SS Hardware (Bangalore), to inspect the structural steel frame and purchase it over the counter.
★ Wooden Panels & Mattresses Not Included: The kit includes all mechanical hardware and structural frames; external wooden cabinet panels, decorative shutters, and mattresses must be sourced separately.
